TATA 3D Welded Mesh / 3D வெல்டு மெஷ் டாடா
M.R.P. : ₹6300/panel
₹5800/panel (8% off)
( Inclusive of GST )
| In Stock | |
| SKU | : FENC_3DWELDMESH_TATA |
| Brand | : DELTAWARE |
| Category | : Fencing Supplies |
Highlights :
MOQ:15 Panels
Get WhatsApp Estimate
Why Deltaware.in
🚀
Fast
Dispatch
♥️
Lowest
Price
🎯
Wholesale
Price
👜
Multi
Brands
⭐
100%
Premium
✔️
Quality
Guaranteed
🔒
Safe
Payments
₹
100+
Payments
Product Details #
TATA 3D Welded Mesh / 3D வெல்டு மெஷ் டாடா is available at Deltaware.in is of best quality. Please view our large selection of related products in Similar products section.

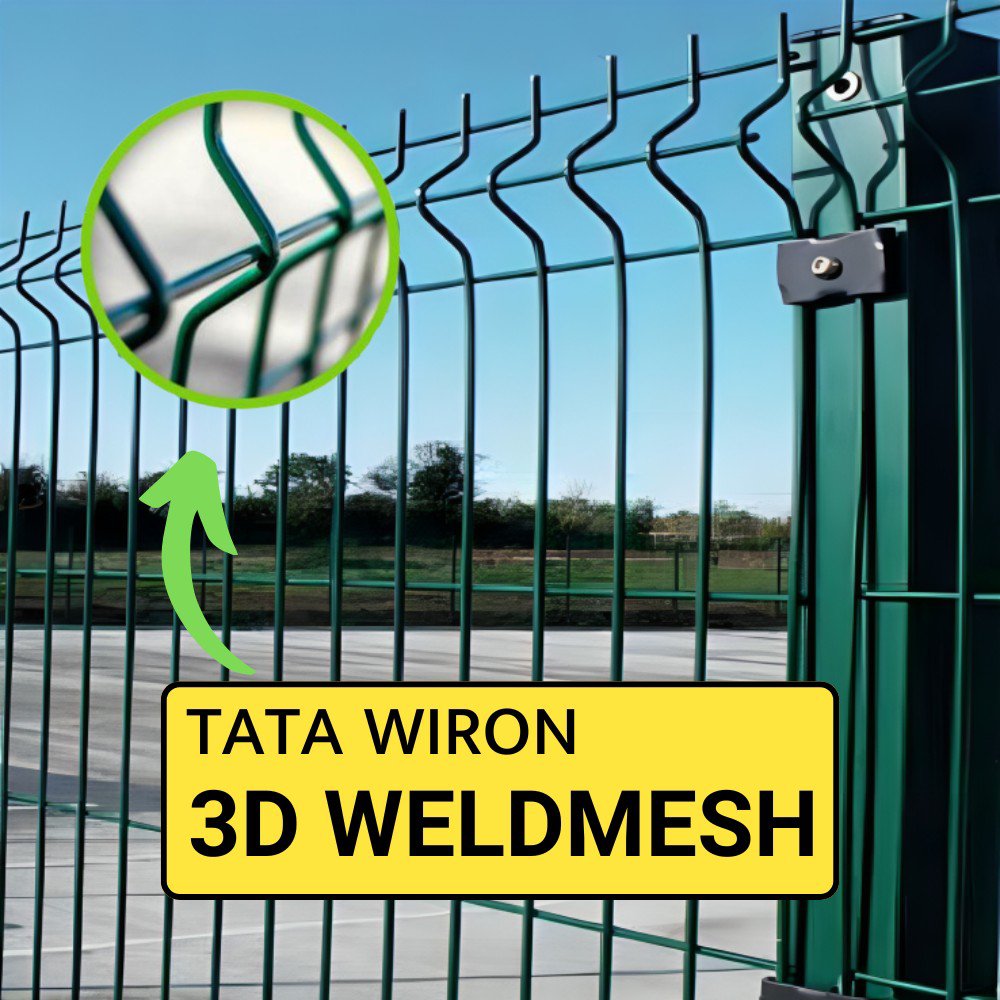

For the first time ever, Tata Wiron 3D Weldmesh offers you the features you have needed all this long.
This unique safety fence comes with a complete, hassle-free solution kit! Be it panels, posts, post-caps, high security spider clamps or mushroom bolts, it contains anything and everything you require. Gone are the days of buying screws or wires separately. Here comes Tata Wiron 3D Weldmesh as a complete solution to your safety needs!
The 3D Welded Mesh is designed for durability, coated with high-purity zinc and a special powder coating, ensuring protection for over 20+ years.
Tata Wiron 3D Weldmesh prices vary depending on height. Here is the latest prices for Tata Wiron 3D Weldmesh made of TATA Wiron wires. Buy Tata Wiron 3D Weldmesh made of Tata Wiron GI Wire online in Tamil Nadu on Deltaware.in
Specification #
Technical Specification of Tata Wiron 3D Weldmesh.
| Minimum Order Quantity | 15 Panels or 120ft length |

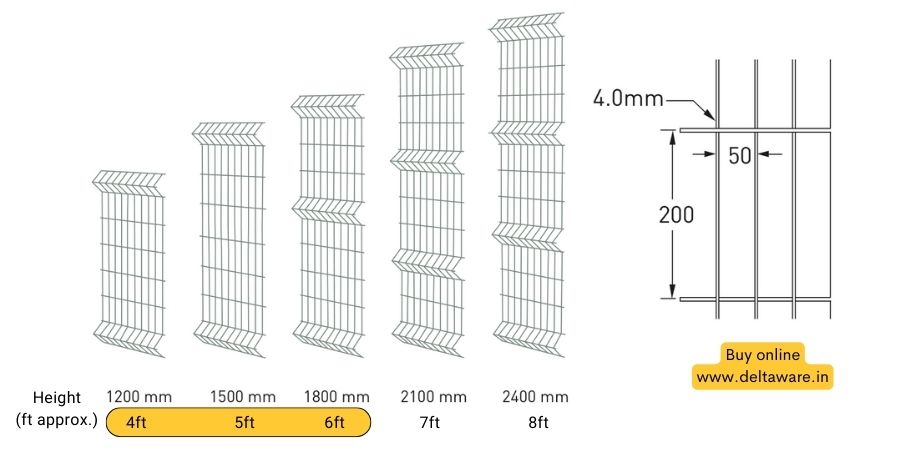

| Panel Height | Instock: 4ft, 5ft & 6ft, Against order: 7ft & 8ft |
| Panel Length | 2500mm (~= 8.2 ft) , Tolerance: +/- 3% |
| Mesh Size | 50x200mm |
| Wire Material | G.I Wire |
| Wire Diameter | 4 mm |
| Wire Zn coating | 40 g/m2 minimum |
| Powder Coating | Pure Polyester (PP) |
| Powder Coating Thickness | 80 microns minimum |
| Corrosion Resistance | Coating remain intact after 1000 hours. (Salt Spray Test after powder coating as per ASTM B117) |
| Weld Strength | 21 kg/mm2(min) (as per IS 4948 (2002)) |
| UV Resistance | No deterioration in colour after 1000 hr. (at 63°C conducted as per ASTM D 1499) |
| Accessories Included | Everything included, ready to install kit. refer Parts Included |
| Color | Green (Instock), Against order: 40+ colors |
Weight Chart #
| Size | Panel (Kg) | Post (Kg) | Accessories (Kg) | Total (Kg) |
|---|---|---|---|---|
| 4ft | 9 | 11 | 1.7 | 21.7 |
| 5ft | 11.2 | 12.6 | 2 | 25.8 |
| 6ft | 13.6 | 14.46 | 2 | 30.06 |
| 7ft | 16.6 | 16.22 | 2 | 34.82 |
| 8ft | 17.8 | 18 | 2 | 37.8 |
Note: Approx. weights are for reference, actual weight may change.

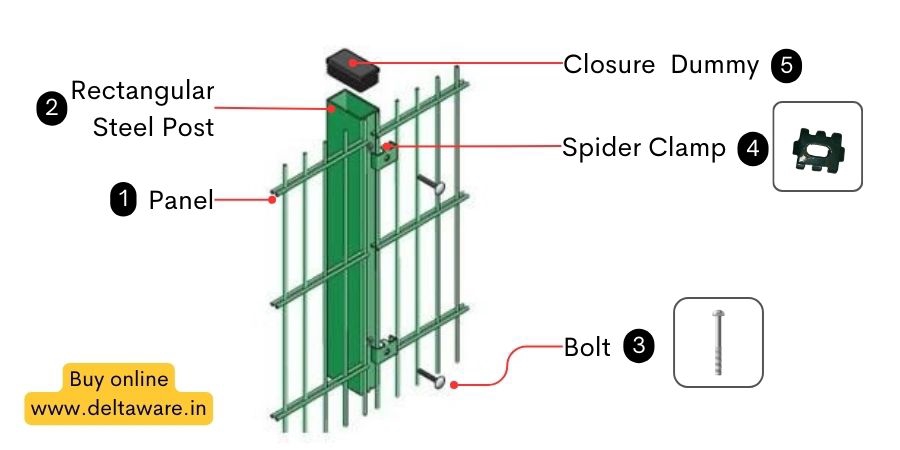

Parts and Accessories Included #
TATA Wiron 3D Weldmesh comes with all accessories needed to fully install the fence. Here is the list of parts that come with each panel you purchase
| 1 | 3D Weldmesh Panel |
| 2 | Rectangular Post 1. Base Plate Post with anchor bolts 2. Straight Post with anchor rods |
| 2 | Mushroom Bolt |
| 4 | Spider Clamp |
| 5 | Closure Dummy |
| 6 | 6A Anchor Rod or 6B Anchor Bolt (refer below images) |
TATA Wiron 3D Weldmesh comes with all accessories needed.
| Panel Size | Post Height (m) | Spide Clamp (nos) | Bolt + Nut (nos) | Anchor Rods (or) Anchor Bolt (nos) |
|---|---|---|---|---|
| 4ft | 1.8 | 3 | 3 | 2 / 4 |
| 5ft | 2.1 | 4 | 4 | 2 / 4 |
| 6ft | 2.4 | 4 | 4 | 2 / 4 |
Note:
- In the above table, the size is for straight posts. For base plate posts, the height of the post is the same as the panel height.
- Based on post type either anchor rod or anchor bolt is supplied.
- Below the ground length for straight post is 1.5ft (approx.) for concrete installation.

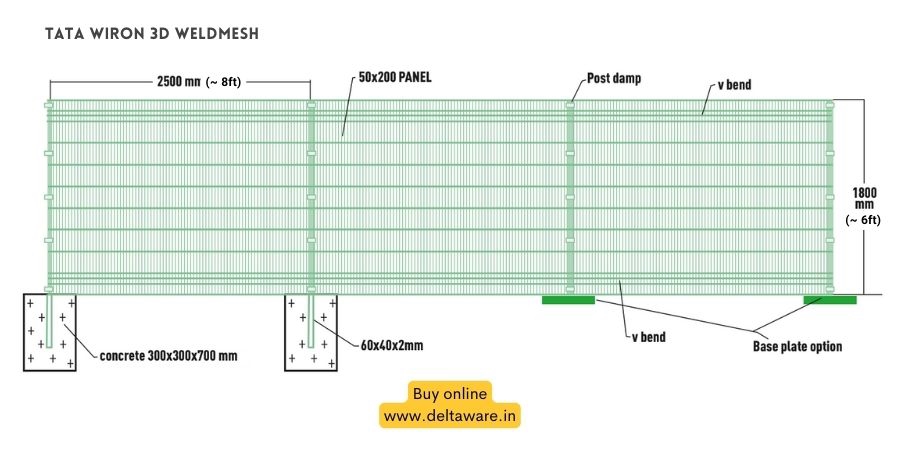

Installation Methods #
TATA Wiron 3D Welded Mesh offers two types of posts
- Base Plate Post: This method involves securing the base plate post to an existing concrete structure or brickwork using an anchor bolt.
- Straight Post with Anchor Rod: Straight posts with anchor rods are fixed in the ground using concrete mixture
TATA Wiron 3D Weldmesh installation method with base plate or anchor rod.
Base Plate Post #
Base Plate Post: This method involves securing the base plate post to an existing concrete structure or brickwork using an anchor bolt.
Straight Post #
Straight Post with Anchor Rod: Straight posts with anchor rods are fixed in the ground using concrete mixture
Benefits of TATA Wiron 3D Weldmesh #
TATA Wiron 3D Weldmesh utilizes robust IP Powder coating and welding to ensure a strong and durable fencing solution, ideal for secure livestock containment and property protection.

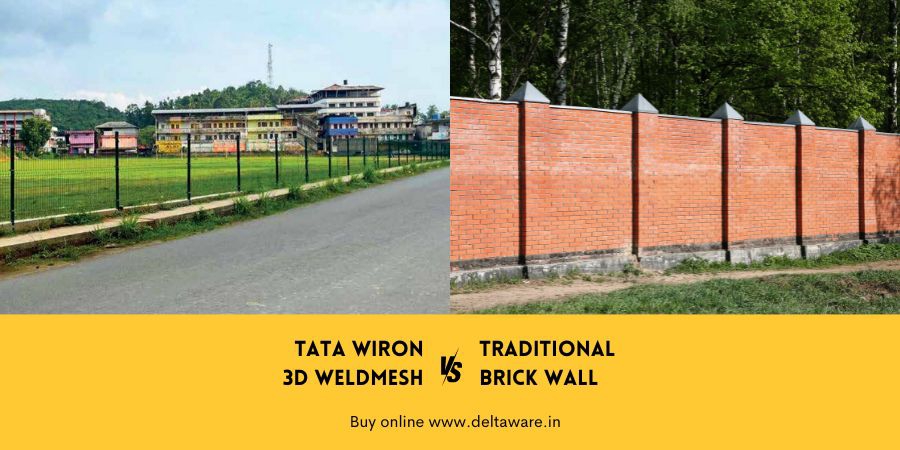

Benefits of TATA Wiron 3D Weldmesh over Traditional Brick Wall
Tested for max impact
Post-caps & Essential accessories
No corrosion, 1000 hours of tested
No Fading, 1000 hours of tested
Anti Climb, Long Lasting
Less labour with faster installation
| TATA Wiron 3D Weldmesh | Traditional Brick Wall |
|---|---|
| 25% Cheaper | Very High Cost |
| Superior Aesthetics | Standard Look |
| Zero Maintenance cost | Periodical maintenance required |
| See through effect & visibility | Opaque wall |
| Easy to install | Installation is labour Intensive |
| Can be disassembled & reused | Cannot be reused |
Why buy Fenceing Material from Deltaware #
Deltaware is a supplier of G.I Chain Link Fence, Steel Fence Post, TATA Wiron Wire, Tata Wiron 3D Weldmesh, TATA Knotted Fence, Barbed Wire & Chain Link Fences made with TATA Wiron G.I. Wire, Tata Stambh Post, in South India (Tamil Nadu). We offer a wide range of fencing products in various sizes, types, and grades that are durable.
For reliable Chain Link fence and Barbed wire made with TATA Wiron G.I Wire, contact Deltaware today. We’re here to assist you in finding the perfect fencing solution for your requirements.
⭐ Best Pricing
Online ordering & GST Billing
🎯 Genuine Quality
100% Best Quality, at Best price
🚀 Flexible Quantity
Low MOQ, based on your requirements.
✔️ Just in Time
In-stock or Custom made, Prompt delivery
Here are some of the benefits of using Deltaware Chain Link Fence:
- Wide range of Fencing Products available
- High quality: Fences, Barbed and Fence Posts are made from high-quality materials.
- Competitive prices.
- Wide range of sizes and shapes.
- Excellent customer service: We offer excellent customer service and are always available to help you with your needs.
Contact Deltaware today to learn more about our Fencing solutions and how we can help you with your project.
