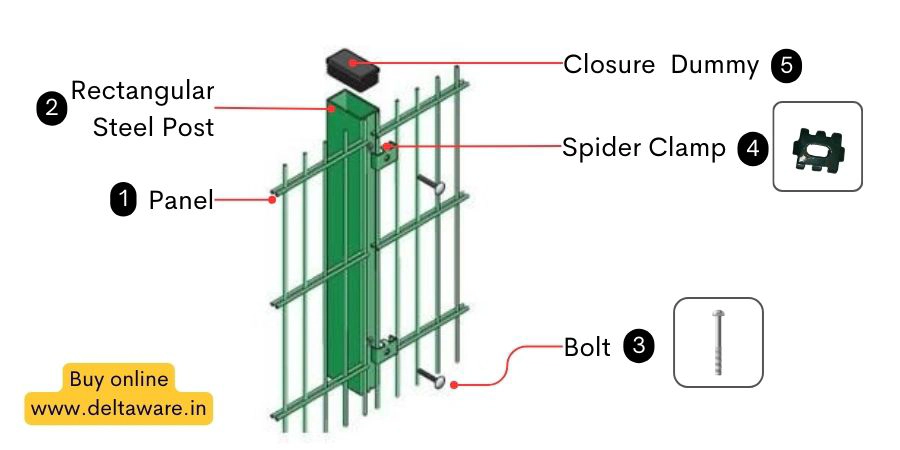

TATA Wiron 3D Weldmesh comes with all accessories needed to fully install the fence. Here is the list of parts that come with each panel you purchase
| 1 | 3D Weldmesh Panel |
| 2 | Rectangular Post 1. Base Plate Post with anchor bolts 2. Straight Post with anchor rods |
| 2 | Mushroom Bolt |
| 4 | Spider Clamp |
| 5 | Closure Dummy |
| 6 | 6A Anchor Rod or 6B Anchor Bolt (refer below images) |
TATA Wiron 3D Weldmesh comes with all accessories needed.
| Panel Size | Post Height (m) | Spide Clamp (nos) | Bolt + Nut (nos) | Anchor Rods (or) Anchor Bolt (nos) |
|---|---|---|---|---|
| 4ft | 1.8 | 3 | 3 | 2 / 4 |
| 5ft | 2.1 | 4 | 4 | 2 / 4 |
| 6ft | 2.4 | 4 | 4 | 2 / 4 |
Note:
- In the above table, the size is for straight posts. For base plate posts, the height of the post is the same as the panel height.
- Based on post type either anchor rod or anchor bolt is supplied.
- Below the ground length for straight post is 1.5ft (approx.) for concrete installation.
